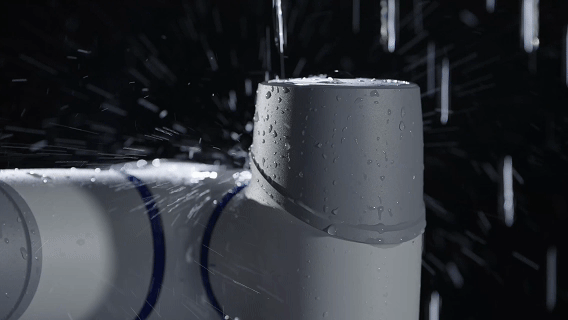

Specifically designed for harsh working environments with high dust, high humidity, and high oil contamination. The product retains the excellent performance, functionality, and ease of use typical of the CRA series, while the enhanced protection level further improves the robot’s adaptability and reliability in challenging environments.

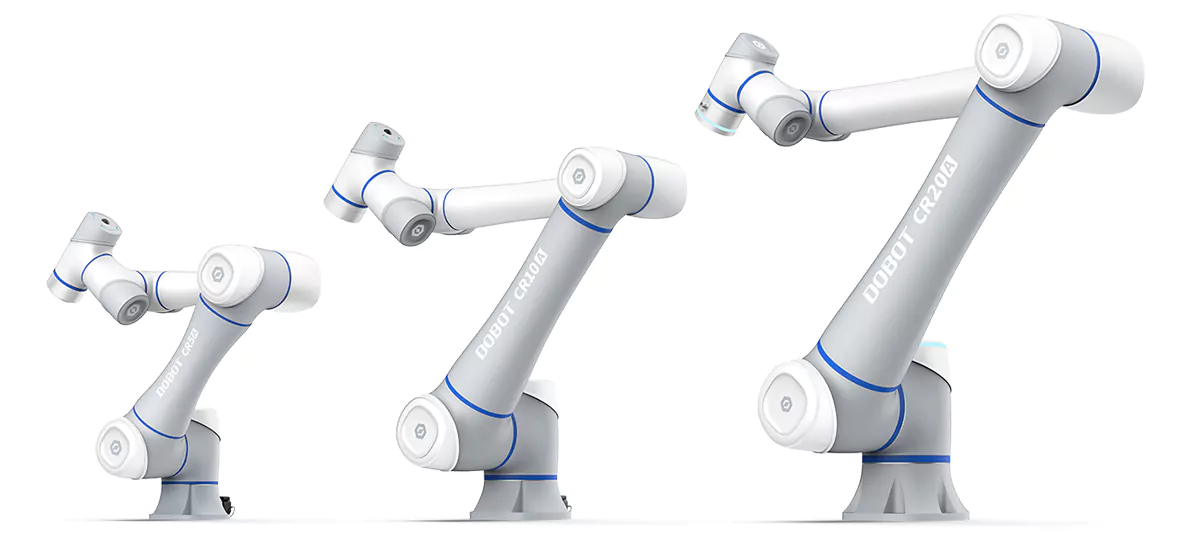

The CRA-IP68 Series maintains the performance, functionality, reliability, and user-friendliness that the CRA series is celebrated for. The CRA-IP68 Series support drag-to-teach control, graphical programming, and code-based programming, no professional required, make automation accessible and easy.
Maximum Linear Speed
2 m/s
Positioning Accuracy
< 0.4 mm
Repeatability Precision
Up to ±0.02 mm
Handle the high dusty environment, prepare for such applications as cutting and grinding.
All exterior plastic components are made from fluororubber, known for its exceptional chemical stability and strong corrosion resistance.

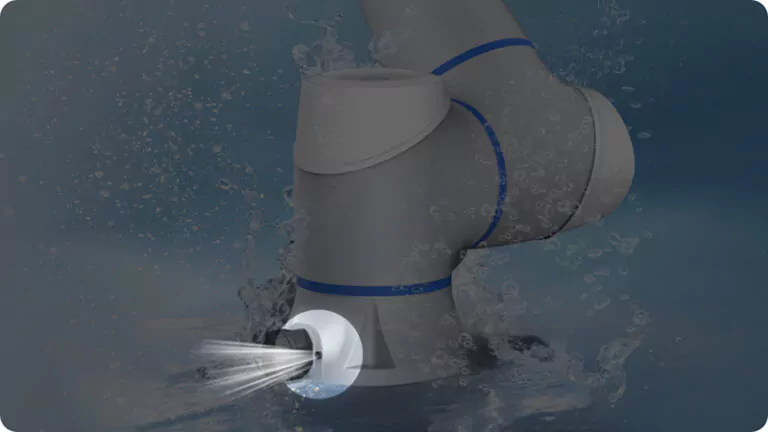

Enables internal pressurization, ensuring positive pressure and enhancing the cobot’s sealing capabilities.
To enhance safety and high adaptability in extreme conditions, the control cabinet adopts IP54 waterproof design, making the CRA-IP68 series fully capable of handling harsh tasks.

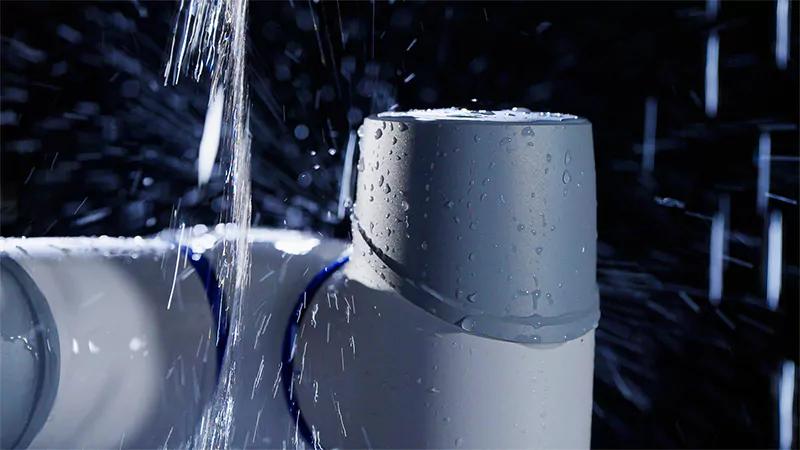

* Certified by SGS under IEC 60529, the robot passed a rigorous 72-hour test to meet IP68 waterproof standards.
* Not suitable for prolonged underwater use.
The DOBOT CR10AP has a maximum reach of 1300mm and a payload of 10kg and has a IP68 Rating. It is specifically designed for tough working environments with high dust, humidity, and oil contamination. It maintains the excellent performance, functionality, and ease of use that characterize the CRA series, while its enhanced protection further enhances the robot’s adaptability and reliability in challenging environments.
| Weight | 40 kg |
|---|
