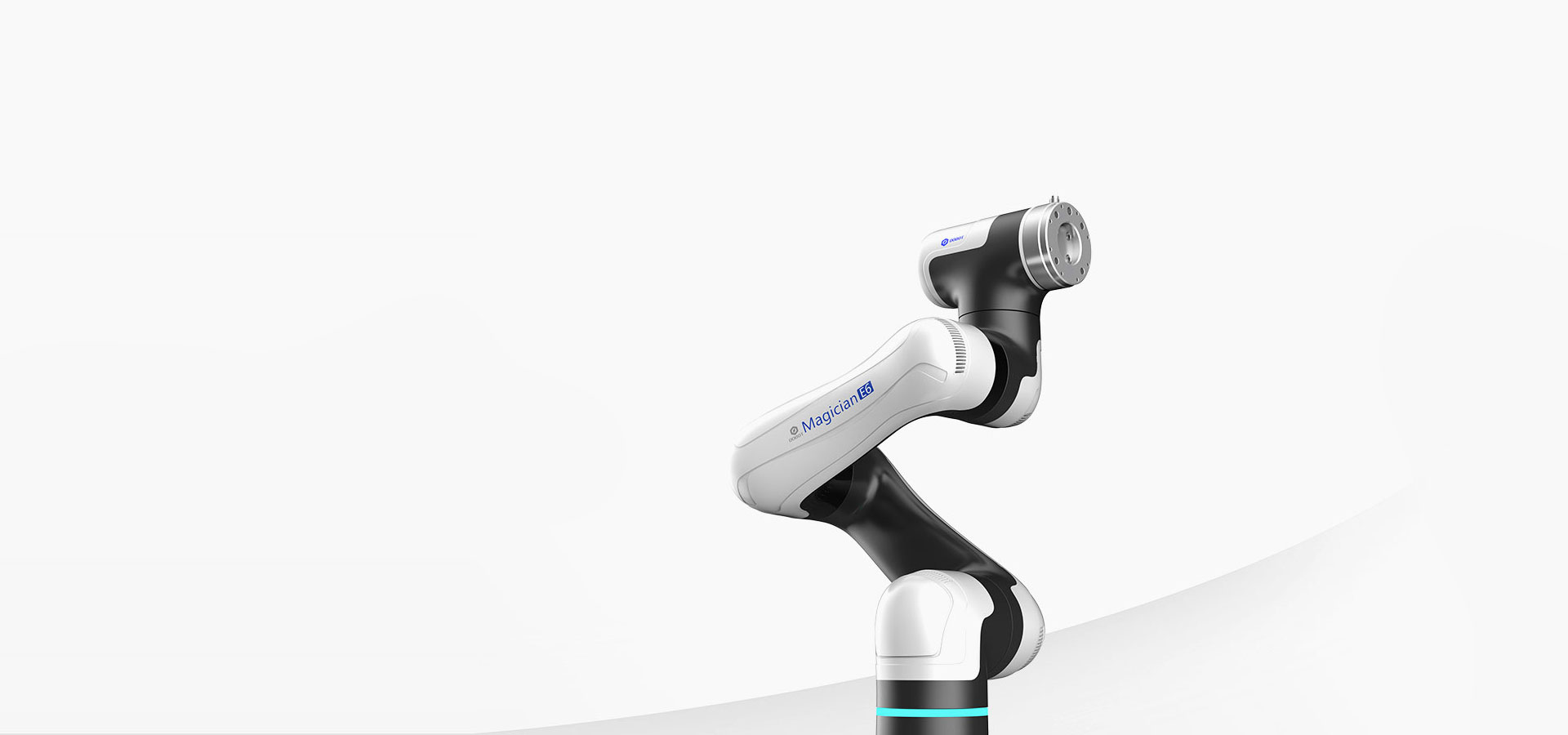

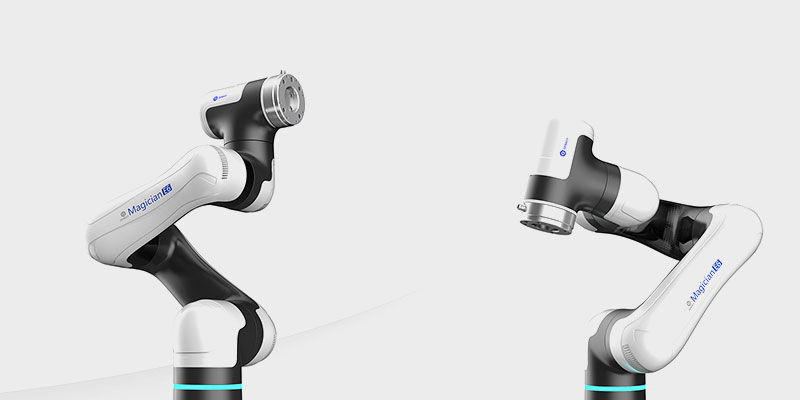

DOBOT Magician E6

  • Product price: €5.649,00excl. VAT (in stock)

    DOBOT Magician E6
    EAN 06970632060342

    Desktop Cobot for Education and Research

    • DOBOT Magician E6

    Collaborative Robot

    The DOBOT Magician E6 is a desktop grade 6-axis cobot designed for education and scientific research. It has an industrial grade performance and is compatible with a wide range of accessories made for industrial use. It can accurately simulate various automation scenarios to provide immersive learning and research experiences. The Magician E6 has a number of interfaces for secondary development and course materials on robotics education, opening doors to a new way of education. It is the ideal platform to explore AI, smart manufacturing and other fields of study.

    High Level Of Safety

    Streamlined body design with collision detection for safer operation. Equipped with a light indicator ring for easy monitoring of Magician E6’s operating status.

    Simple Deployment

    Compact, lightweight and flexible, the Magician E6 can be effortlessly installed on a desk. Built-in control box simplifies external wiring for a plug-and-play experience.

    Easy to use

    Patented trajectory replay technology eliminates the need to drag and drop code to learn programming. Supports graphical programming. Everyone can easily learn and master the operation of Magician E6.

  • DOBOT Magician E6

    Weight
    ≤7.2 kg
    Number of Axes
    6
    Payload
    500 g
    Working Radius
    450 mm
    Repeatability
    ±0.1 mm
    Maximum Speed of TCP
    0.5 m/s
    Range of Joints
    J1
    ±360°
    J2
    ±135°
    J3
    ±154°
    J4
    ±160°
    J5
    ±173°
    J6
    ±360°
    Maximum Joint Speed
    120°/s
    Power
    100V~240V AC, 50/60 Hz
    Rated Voltage
    48V DC, 5A
    Power Consumption
    130W
    I/O Interface Communication Interface
    Ethernet
    2, for TCP/IP and Modbus TCP communication
    I/O Interface
    Arm Tip
    DI x 2, DO x 2, 24V x 1, GND x 1
    Base
    DI x 16, DO x 16, 24V x 4, GND x 4
    I/O Power
    24V, Max 2A, Max 0.5A for each channel
    External Interface
    EMO x 1, ABZ encoder x 1, Power connector x 1
    Control Software
    DobotStudio Pro
    IP Rating
    IP20
    Base Dimensions
    162 mm x 120 mm x 103 mm
    Working Environment
    Temperature: 0° to 40° C.
    Humidity: 25 to 85% noncondensing
    Noise
    60dB(A)
    Installation Orientation
    Desktop
    Materials
    Aluminum alloy, ABS plastic
Request quotation
