• SafeSkin

    Detectietype
    Nabijheid en contact
    Detecterende doelen
    Menselijke lichamen, metalen, vloeistoffen, enz. (Minder effectief bij niet-geleidende objecten)
    Installatielocatie
    J4, J5, J6 aanbevolen
    Effectief detectiebereik
    5 ~ 15 cm (varieert afhankelijk van de installatielocatie)
    Detectiecyclustijd
    0,01 s
    Uitvoeringstijd noodstop
    0.1 s
  • CR3AS

    Gewicht
    25 kg
    Maximaal laadvermogen
    5 kg
    Werkradius
    900 mm
    Maximaal bereik
    1096 mm
    Nominale spanning
    48V DC
    Maximale lineaire snelheid
    2 m/s
    Gezamenlijke bereiken
    J1
    ±360°
    J2
    ±360°
    J3
    ±160°
    J4
    ±360°
    J5
    ±360°
    J6
    ±360°
    Maximale snelheid van gewrichten
    J1/J2
    180° /s
    J3/J4/J5/J6
    223° /s
    End-Effector I/O Interface
    DI/DO/AI
    2
    AO
    0
    Communicatie Interface
    Communicatie
    RS485
    Controller I/O
    DI
    16
    DO/DI
    16
    AI/AO
    2
    ABZ Incremental Encoder
    1
    Herhaalbaarheid
    ±0.02 mm
    Communicatie
    TCP/IP, Modbus, Wi-Fi
    IP Rating
    IP54
    Temperatuur
    0° ~ 50° C
    Stroom
    150W
    Materialen
    Aluminum alloy, ABS plastic
Offerte aanvragen

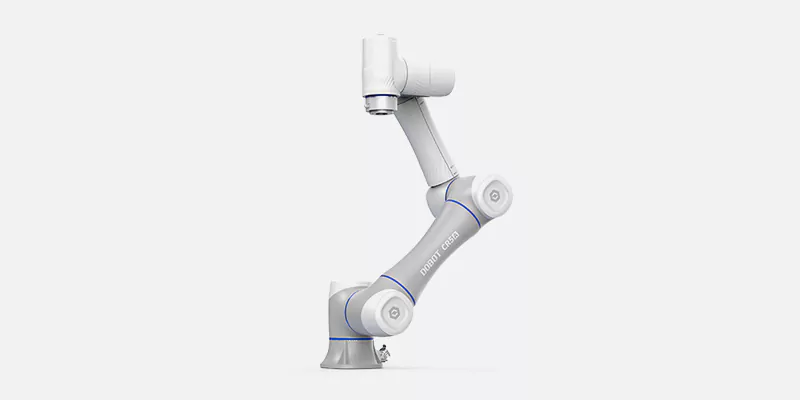

DOBOT CR5AS
