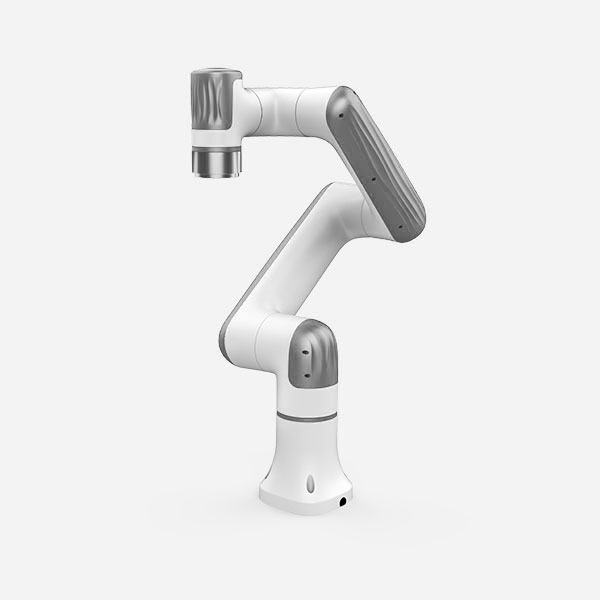

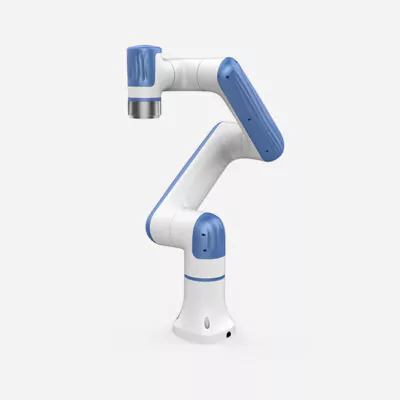

DOBOT Nova 2

Dobot Nova Series

Payload
2 kg

Reach
625 mm

Axes
6

Repeatability
±0.05mm

Productvideo

Bereik

  • Verzendlijst

  • DOBOT Nova 2

    Gewicht(kg)
    11 kg（24.3 Ibs)
    Rated load
    2 kg（4.4 Ibs)
    Working radius
    625 mm（24.6 in)
    Maximum working speed
    1.6 m/s（63 in/s)
    Range of motion
    J1
    ±360°
    J2
    ±180°
    J3
    ±156°
    J4
    ±360°
    J5
    ±360°
    J6
    ±360°
    Maximum joint speed
    J1
    135°/s
    J2
    135°/s
    J3
    135°/s
    J4
    135°/s
    J5
    135°/s
    J6
    135°/s
    End IO
    DI
    2 inputs
    DO
    2 outputs
    RS485
    Support
    Repeated Positioning accuracy
    ±0.05 mm
    IP rating
    IP54
    Noise
    65 dB(A)
    Temperature range
    0~50℃
    Power consumption
    Typical value
    100 W
    Maximum value
    250 W
    Installation mode
    Any angle
    Cable length from robot body toelectric cabinet
    3 m（118.1 in）
    Material
    Aluminum alloy, acrylonitrile butadieneStyreneplastic

  • Controller

    Size
    200*120*55 mm（7.9*4.7*2.2 in )
    Weight
    1.3 kg (2.9 lbs)
    In out power
    30~60V DC
    IO power
    24V, Max 2A, Max 0.5A for each channel
    IO interface
    DI
    8 inputs (NPN or PNP)
    DO
    8 outputs (NPN or PNP)
    AI
    2 inputs, voltage mode, 0~10V
    AO
    2 outputs, voltage mode, 0~10V
    Communication interface
    Network interface
    2, for TCP/IP and Modbus TCPcommunication
    USB
    2, for connecting USB wireless module
    485 interface
    1, for RS485 and Modbus RTUcommunication
    Environment
    Temperature
    0~50℃
    Humidity
    ≤95%, non-condensation
    Remote power on/off
    Support
    IP rating
    IP20
    Cooling mode
    Passive heat loss
    Teaching mode
    PC, APP（Android, iOS)
