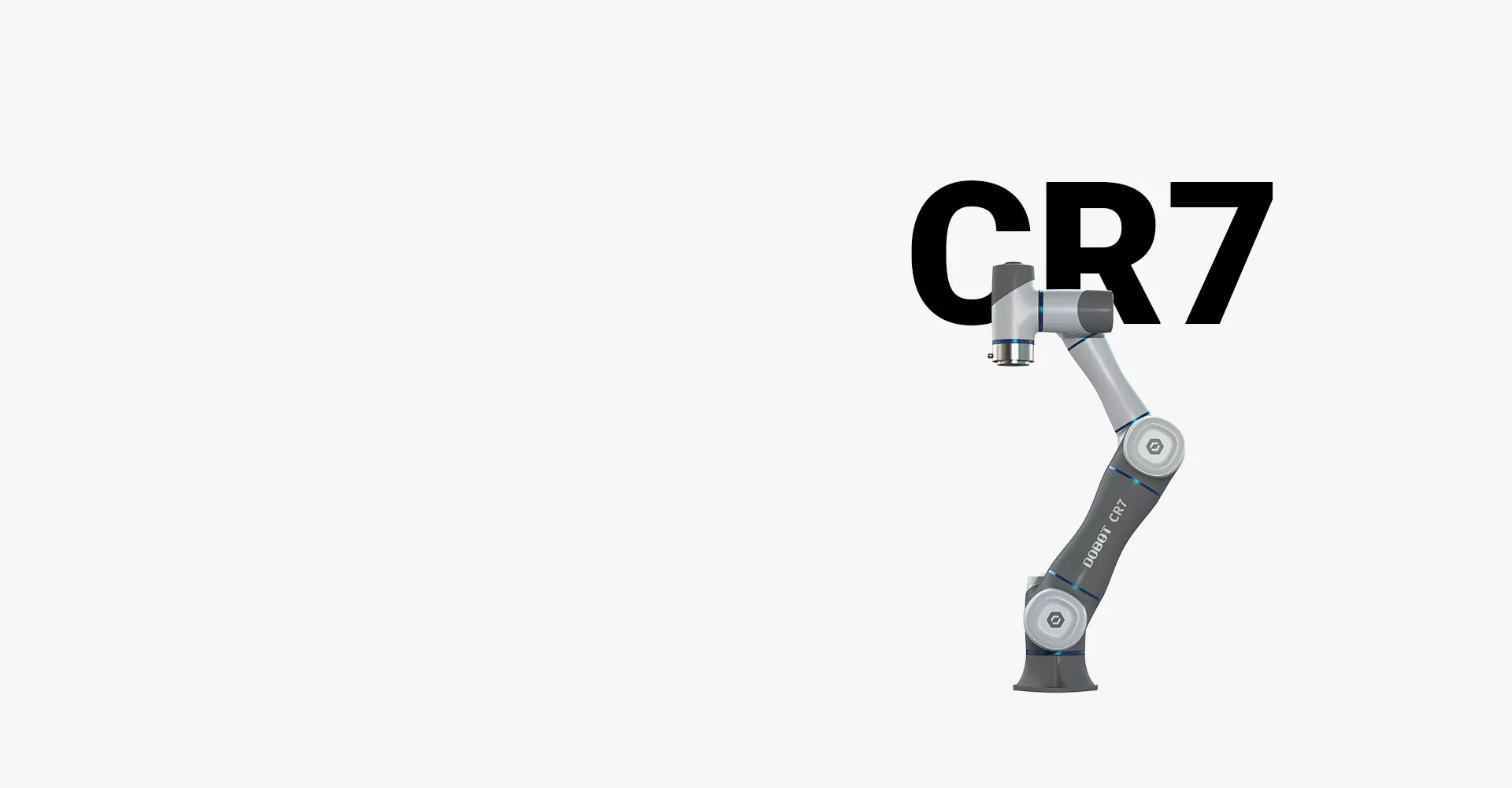

• DOBOT CR7

    CR Collaborative Robot Series - Safe, Flexible and Self-Learning

  • Collaborative Robot Series

    CR7 robotic arm is an automation solution designed for industrial and educational purposes. Being adaptable to various applications, DOBOT’s CR7 series is easy to use and quick to perform.

    • Payload

      7kg

    • Reach

      800mm

    • Axes

      6

    • Repeatability

      0.02 mm

  • EASY TO DEPLOY

    QUICK TO PERFORM

    Improve the flexibility of your product line and production efficiency by using an easy to deploy CR collaborative robot within 20 minutes to set up and quickly put into application within 1 hour to perform.

  • ACCESSIBLE

    EASY TO MASTER

    Our software and arithmetic technology makes the operation and management of the CR collaborative robot series intelligent and straightforward. It can accurately emulate human actions by demonstrating the path. No programming skills are required for that.

  • EXPANDABLE

    COMPATIBLE

    CR collaborative robot series is recommended not only because of its extensive portfolio of end of arm tooling devices but also because of universal communication interfaces. Featuring multiple I/O and communication interfaces makes CR collaborative robot series widely expandable and compatible with many end of arm tooling devices. As a result, CR collaborative robots satisfy a wide range of needs in various application scenarios.

  • INVESTMENT SECURITY

    SUPER RELIABLE

    CR collaborative robot series is solid and durable to ensure a long life span of 32000 hours of service life. It also has tight tolerances to ensure the investment’s security and higher ROI.

  • DOBOT SafeSkin (add-on)

    DOBOT’s exclusive SafeSkin technology is a wearable non-contacting collision detection product for collaborative robots.

    With the electromagnetic induction in SafeSkin, the CR collaborative robot series can detect an electromagnetic object quickly within 10ms and stop moving to avoid contacts or injuries until the object moves away and resume operation without compromising production automatically.

  • APPLICATIONS

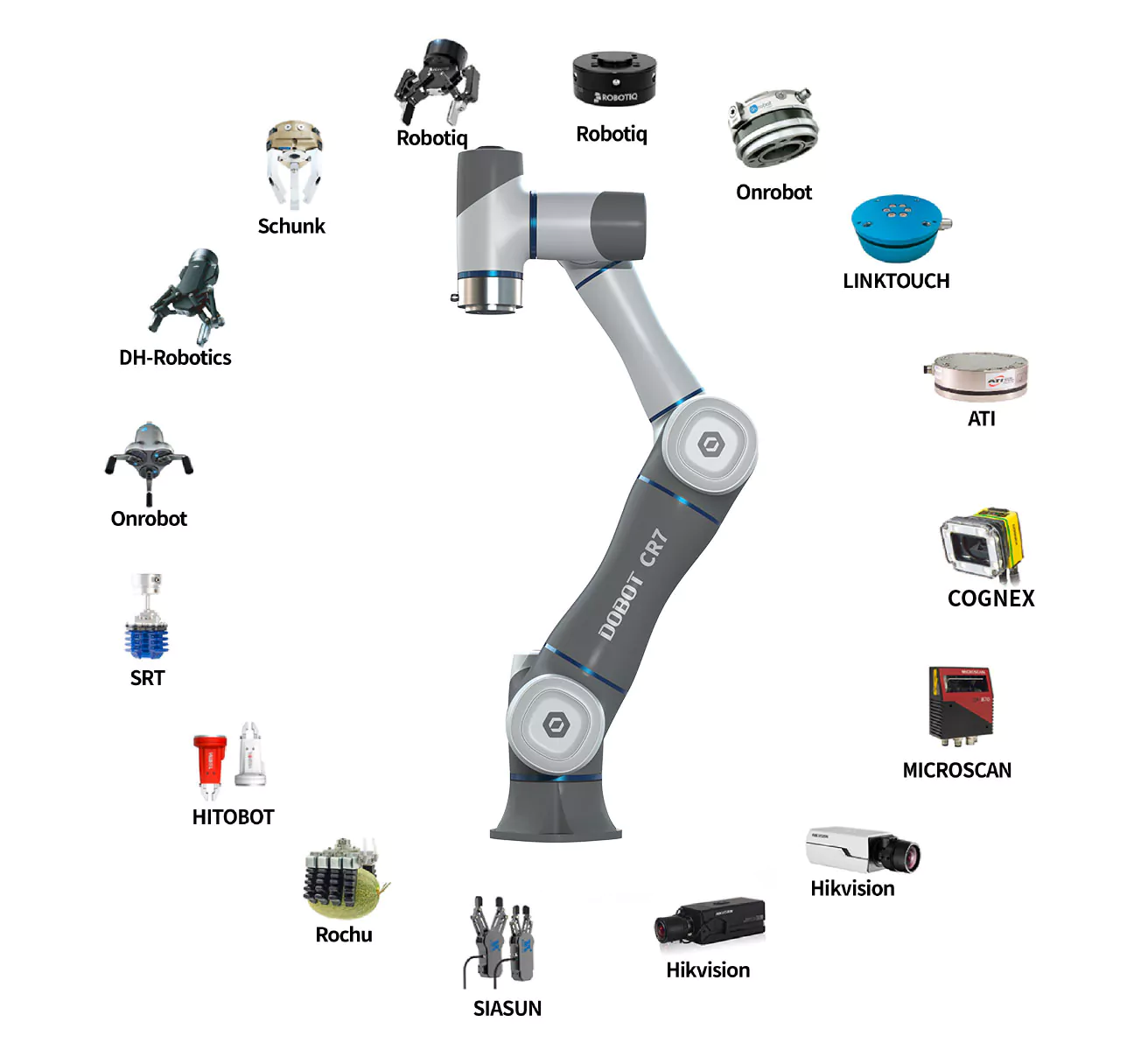

  • DOBOT ECOSYSTEM

    DOBOT ecosystem boosts the automation environment, consisting of a wide range of end-effectors and other accessories. From suction tools to force sensors, our robot ecosystem serves the tastes of various customer needs.

    Experienced in operating in multiple applications, including loading and unloading, sorting, assembly, and others, the DOBOT ecosystem is also suitable for rich production characteristics, such as objects of different sizes, shapes, weight, and even tactile perception.

    DOBOT CR collaborative robot series is expandable to a wide range of accessories to fulfill businesses’ multiple needs and applications.

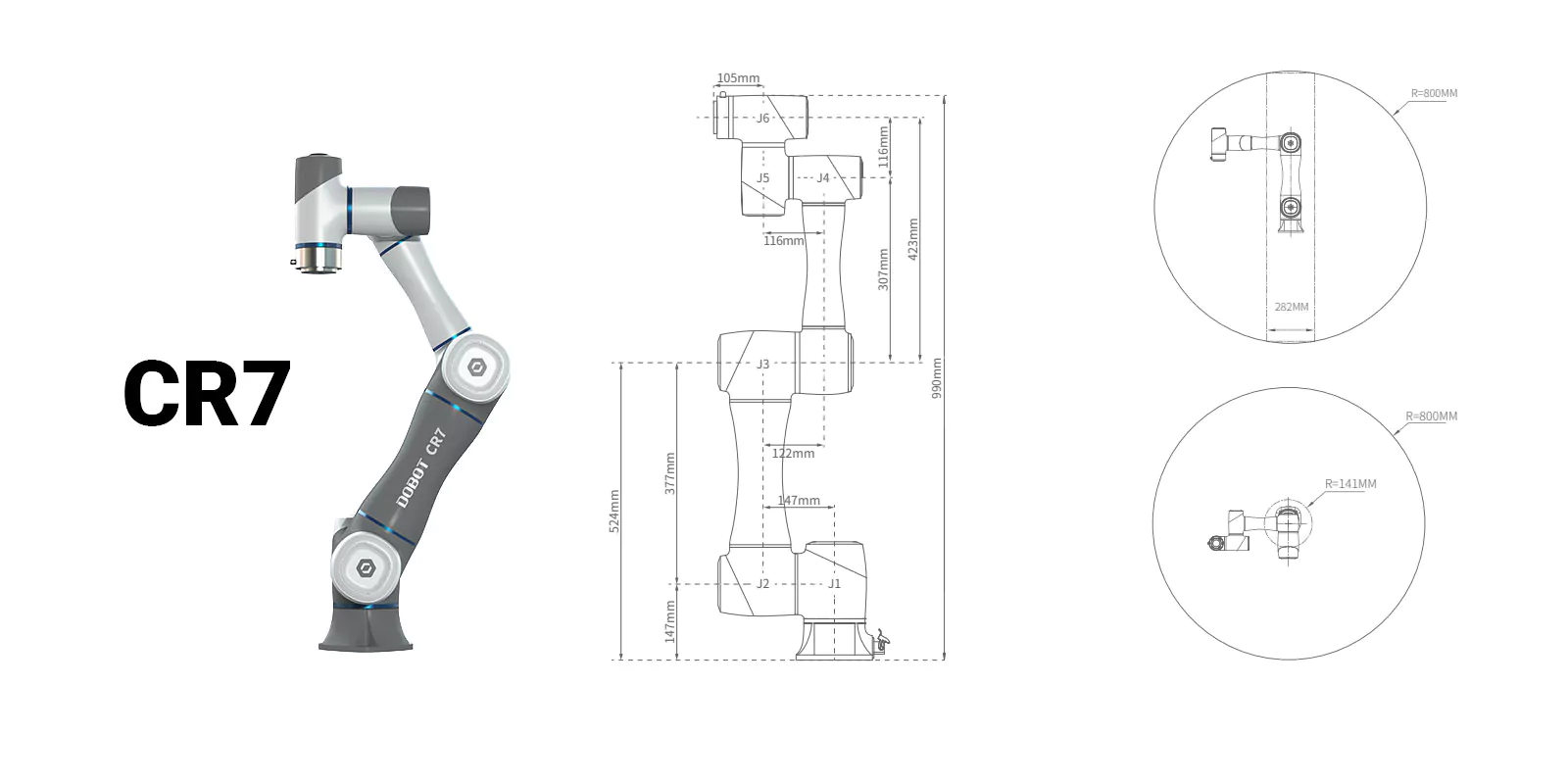

  • Reach

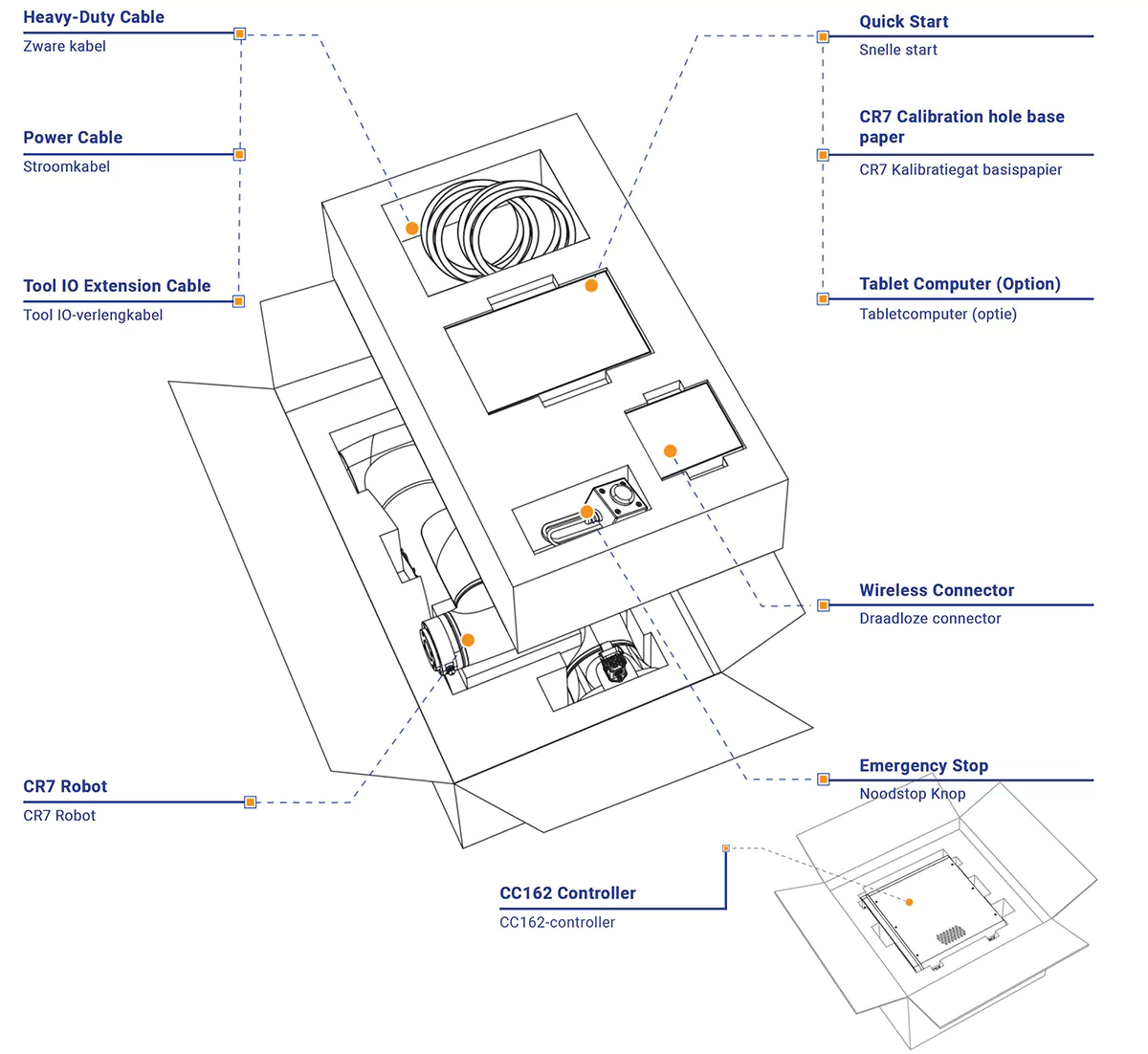

  • Shipping List

  • Specificaties

    Robot Type
    DOBOT CR7
    Weight(kg)
    24.5kg
    Rated Payload(kg)
    7kg
    Reach(mm)
    800mm
    Max. Reach(mm)
    990mm
    Rated Voltage
    DC48V
    Maximum Speed
    3m/s
    J1
    ±360°
    J2
    ±360°
    J3
    ±160°
    J4
    ±360°
    J5
    180°/s
    J6
    ±360
    Maximum Speed of Joints
    J1/J2
    180°/s
    J3/J4/J5/J6
    180°/s
    End-Effector I/O Interface
    DI/DO/AI
    2
    AO
    0
    Communication Interface
    Communication
    RS485
    Control Box I/O Ports
    DI
    16
    DO/DI
    16
    Repeatability
    AI/AO
    2
    ABZ Incremental Encoder
    1
    Cable length from body to cabinet
    5m
    Repeatability
    ±0.02mm
    Communication
    TCP/IP, Modbus TCP, WIFI
    IP Rating
    IP64
    Temperature
    0 ℃ -45℃
    Power Consumption
    150W
    Materials
    Aluminum alloy, ABS plastic
