DOBOT Collaborative Robot Universal Training Platform

  • DOBOT Collaborative Robot Universal Training Platform

    5.799,0014.999,00excl. VAT

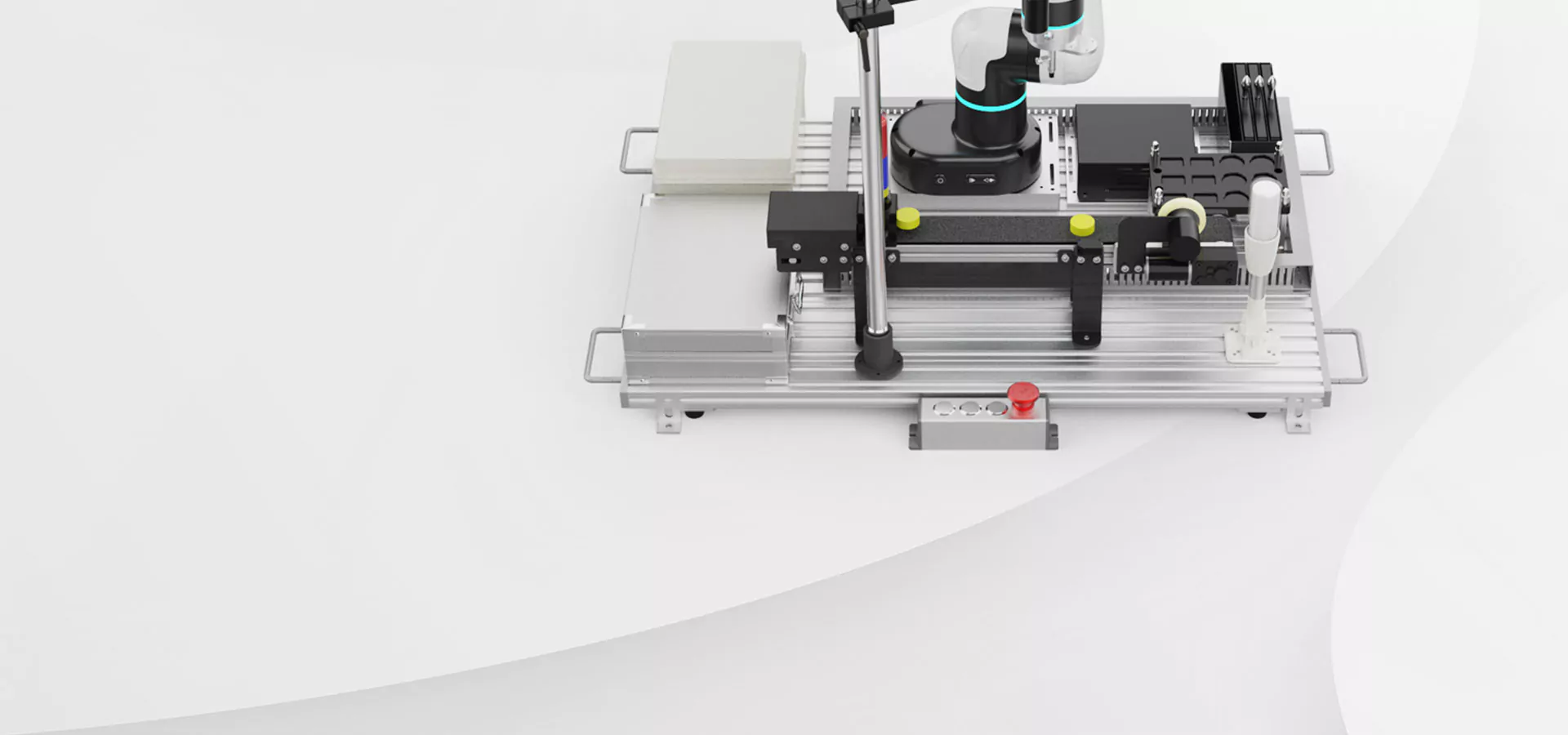

    The DOBOT Collaborative Robot Universal Training Platform is a teaching platform for vocational schools and enterprise training which integrates a robots, control system, vision system, conveyor belt and other components.

    SKU: DBT-Universal-Training-Platform Categories: , ,
  • DOBOT Collaborative Robot
    Universal Training Platform

    Universal platform that supports
    various robot models
    EAN 6150409675614

  • DOBOT Collaborative Robot Universal Training Platform

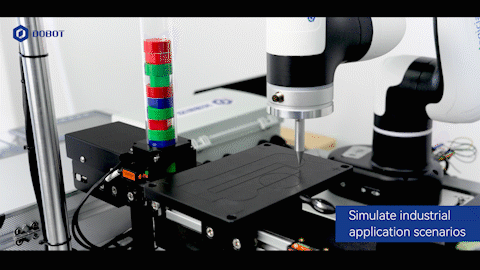

    Collaborative Robot Universal Training Platform is a teaching platform for vocational schools and enterprise training which integrates a robots, control system, vision system, conveyor belt and other components. It adopts a modular design and can be combined flexibly and easily for automation simulation, such as object detection, grabbing, handling, palletizing, and assembly, as well as teaching projects such as robot system calibration, trajectory tracking, and communication control, helping students acquire skills related to smart robot systems, and improve practical and innovative capabilities effectively.

    Rich Functions

    Use the system to teach robotic system calibration, trajectory tracking, communication and more. By combining with the workpiece models, tasks like object tracking, grabbing, inspection, transportation, palletizing and assembly can be carried out.

    Easy Operation

    By combining lightweight collaborative robot (works with CR3/E6/MG400) and flexible modular units, users can create automation tasks easily.

    High Usability

    The system covers topics such as robotic system, robotic vision system and optional PLC modular system. Users can deal with the majority of automation tasks after learning. The Conveyor Belt Kit can be used independently with the robotic arm itself.

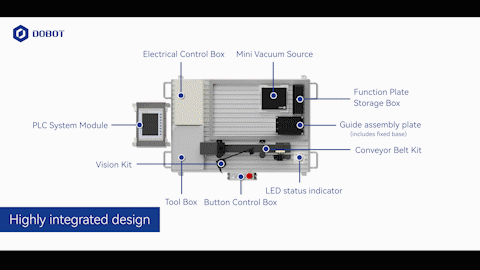

  • DOBOT Collaborative Robot Universal Training Platform

  • Standard

    Vision Kit
    1x
    Includes Industrial Camera / Prime Lens / Light Source / Camera Stand
    Conveyor Belt Kit
    1x
    Includes Conveyor Belt Module / Feeding Module / Encoder (Can be purchased exclusively)
    Universal Training Platform
    1x
    - Mini Vacuum Source
    1x
    Air Pressure Range
    - Function Plate Storage Box
    1x
    For storing track plate, standard inspection plate and mobile phone location plate and more.
    - Guide Assembly Plate
    1x
    Includes Fixed Base
    - Button Control Box
    1x
    Includes the start, stop, reset and emergency button
    - LED Status Indicator
    1x
    Includes buzzer, color changes between red, green and yellow.
    - Electrical Control Box
    1x
    Includes Electrical parts (for distribution wing)
    - Tool Box
    1x
    Includes spare parts, workpieces, suction cup, calibration needle and other tools.
    - Aluminium Base
    1x
    600 mm * 900 mm
  • Optional

    Dobot Robot
    1x
    Works with DOBOT CR3/E6/MG400
    PLC System Module
    1x
    Includes Siemens 1200 Series / HMI Touch Screen
Request quotation
