• DOBOT AI-Starter

    Discover AI, start with the AI ​​Starter!

  • WHAT IS AI-STARTER?

    Designed to learn artificial intelligence

    AI-Starter is an educational robot platform at the entry level, an integrated Robotics teaching package; mechanics, electronics and programming.

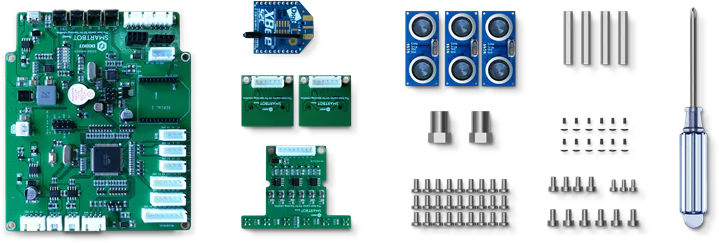

    AI-Starter is equipped with an Arduino motherboard, has many sensor modules that can realize interesting functions. Consider following a patrol line and avoiding obstacles. Learning becomes fun which can increase the interests in Robotics. AI-Starter supports graphic programming.

    Children gain programming knowledge by simply visually dragging and dropping commands (Blockly). Logical thinking is being developed and they are training to become the front runners in the age of artificial intelligence. Start by learning artificial intelligence with AI-Starter.

  • GRAPHIC PROGRAMMING MAKES TEACHING FUN

    With Arduino-compatible graphic programming software, children can gain intuitive programming knowledge and easily cultivate logical thinking.

  • SMART AUTOPILOT

    AI-Starter has different types of sensors, including: an infrared patrol line, ultrasonic waves, colors, light-sensitive and geomagnetic sensors. These make automatic driving possible and it is a pleasure to experience the charm of the autopilot in this way.

  • AI EDUCATION WORKSHOPS: ALL FUN!

    Teaching lessons and online courses on robot programming are offered. Students can follow the tutorials to assemble the Robot step by step, build circuits and they learn to write programs themselves.

  • EXPANDABLE INTERFACE FOR DIFFERENT APPLICATIONS

    AI-Starter is equipped with XBEE, bluetooth, universal IO, a serial port, I2C and other extensive interfaces. This allows children to give free rein to their imagination and to make new discoveries.

  • ONE-STEP USB SOCKET

    The battery, with a large capacity of 18650 and the possibility that it can be charged by connecting it directly to a universal USB charger, ensures sustainable use.

  • Specifications

    Operating Voltage
    7.4V
    Control Board
    DuDuino Mega2560 (Compatiable with Arduino Mega2560)
    MPU
    ATmega2560
    Battery
    18650 Li-ion rechargeable battery
    Ultrasonic Measurement Range
    30mm-1000mm
    AI-Starter Size
    195mm x 172mm x 79mm
    AI-Starter Weight
    810g
    Maximum Load
    500g
    Tire Diameter
    67mm
    Operating Environment
    0℃ - 40℃
    Programming Software
    CoSpace challenge platform, Arduino IDE or Mixly
    Communication Interface
    USB communication / Serial communication
    Expansion Interface
    4PIN general I / O interface x 2
    Sensor
    Ultrasonic sensor x 3 / Color sensor x 2 / Infrared sensor / Geomagnetic sensor x 1 / Light sensor x 1
  • Motor Parameters

    Reduction ratio
    48:1
    Voltage
    7V
    No-load current
    150mA
    Stall current
    150mA
    Maximum rotate speed
    200r/m
    Encoder resolution ratio
    585pulse/r
